FMC225D chain wheel hydraulic shovel
- It has a display system and automatic fault
- Upgraded and optimized plumbing of the hydraulic system in order to reduce damage and energy loss
- Electrical sockets and connections insulated against moisture and dust with a high security factor
- Air conditioning system (cooling and heating)
- Sun protection glass
Technical specifications of the device
- CUMMINS model 6BTAA5.9-C178-ll high power turbocharged engine
- Number of cylinders 6
- Maximum torque/speed 708N.m/1500 rpm
- The displacement of the engine is 5.9 liters
- Engine power 178 horsepower
Engine and power transmission system

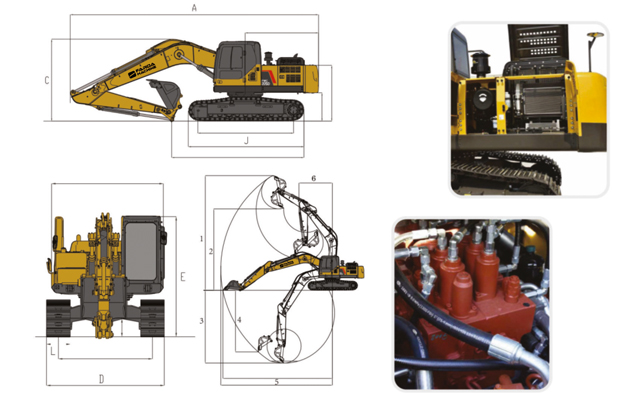

- The length of the device is 9580mm-A
- The height of the canvas when closed is 3060mm-C
- Machine width 2980mm-D
- Cabin height 3050mm-E
- Chain length 4385mm-J
- Chain width 600mm-L
- Maximum access height 1-10190mm
- Maximum unloading height 2-7260mm
- Maximum drilling depth 3-6510mm
- Maximum drilling depth of vertical wall 4-5980mm
- Maximum horizontal reach 5-9875mm
- Minimum boom in closed state 6-2910mm
Hydraulic system and steering
- KAWASAKI hydraulic and control system
- The maximum power of the main pump is 500L/min
- Main safety valve pressure 34.3/37.3MPa
Fuel supply system
- Fuel tank capacity 385L
- The capacity of the hydraulic tank is 220L
- L20 engine oil
