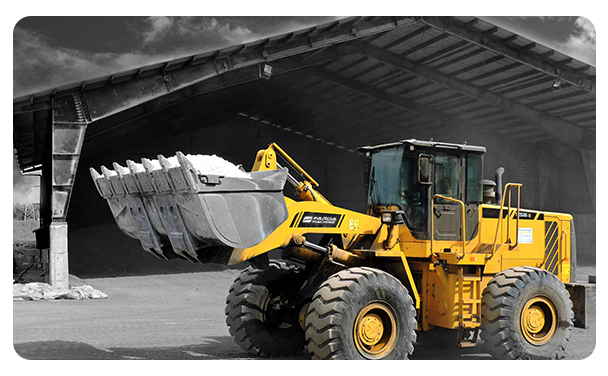

Wheel loader FMCFL958G-II

  • High balance and stability in different working conditions
  • Efficiency and endurance against variable environmental conditions from -35 to +50 degrees Celsius
  • High drilling power with fast performance and the ability to carry and move heavy volumes
  • Easy service and maintenance and easy access to internal parts

Technical specifications of the device

  • Dimensions (length*width*height) 3.380*2.980*8.420
  • Net weight of the device (KG): 16.830
  • Bucket volume (m3): 3
  • Standard loading capacity (KG): 5.000
  • Tensile strength (KN): 155
  • Drilling force (KN): 165
  • Distance between axles (mm): 3.100
  • Maximum horizontal discharge distance (mm): 1.150
  • Maximum discharge height (mm): 3.130
  • Maximum speed of the device (Km/h): 48
  • Steering angle (degrees): 38
  • Maximum tilt capability (degrees): 29

Engine and power transmission system

  • 6-cylinder turbocharged SC11CB220G2B1 engine under CAT license
  • Engine power 220 hp at 2,200 rpm
  • Automatic electric gearbox model ZF4WG200 under license of ZF
  • Axel Meritor newly designed and reinforced axles under license from Arvin Meritor
  • Engine volume 9726L

Hydraulic system and steering

  • Lovol Type high pressure and economic hydraulic pump for tools and steering
  • EATON hydraulic steering
  • Intelligent circuit pressure control system
  • The capacity of the hydraulic tank is 140 liters

Bosch fuel system

  •  Injector needle pump
  • Return circuit and economical fuel consumption
  • 3-stage fuel filtration
  • Fuel tank capacity 280 liters

Braking and stopping system

  • Dry brake caliper with air-oil brake circuit
  • Double brake booster and separate rear and front axle
  • Handbrake system (Gardan lock) Emergency break
  • Tubeless tire with 3-piece rim, size 25*23.5

Operator cabin

  • Suitable and spacious space with full view around
  • Sound and dust insulation
  • Air conditioning system (cooling and heating)
  • Joystick tool control system
  • Comfortable and standard seat with the ability to adjust the operator’s weight
  • Color monitor and reverse camera

Custom equipment

  • Cummins or Weichai Power engine
  • Hydromechanical gearbox (Manual)
  • Reinforced bucket for forklift trucks
  • Three-stage engine oil air filter
  • loading weighing system and the ability to save and print receipts
  • FOPS/ROPS
